Lightweight evacuation mechanism MEL-1 The MEL-1 is designed for towing (evacuation) of various types of vehicles to the maintenance area – faulty wheeled vehicles, including those without one or both wheels.

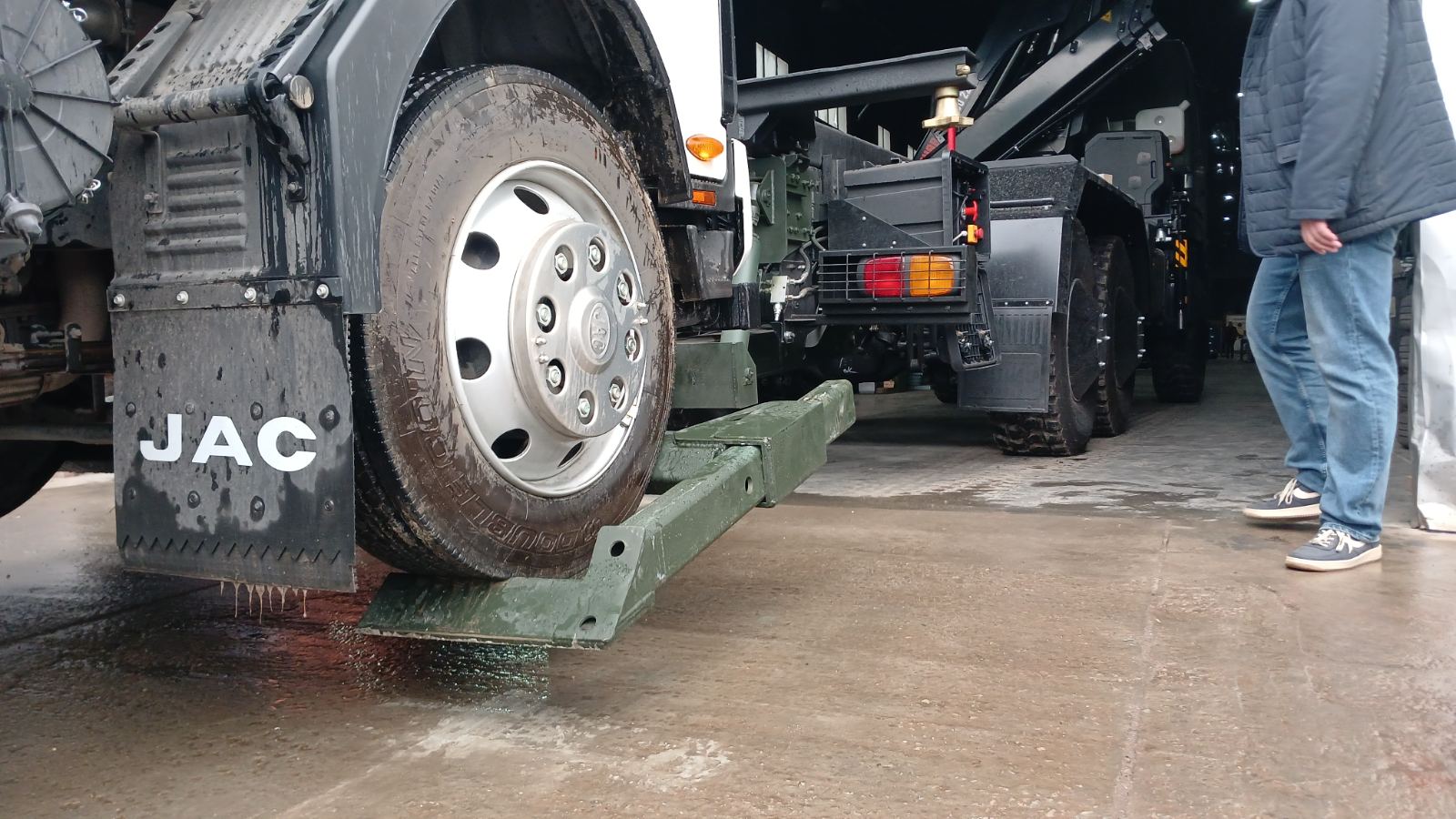

The vehicle can be moved by lifting the front or rear wheel axle, with fixation by the wheels or a beam. The MEL-1 is mounted to the truck frame using standard mounting points.
The body of the mechanism has a retractable hydraulic boom, on which a swivel traverse with sliding gripping units is mounted. It is possible to tow vehicles with any track and wheel size.
It also includes an oil station, a hydraulic cylinder control unit and an electric winch mounted on the rear panel of the MEL-1 to work with vehicles that cannot be approached within the grip distance.
1. Maximum load – 4.5 tonnes
2. Maximum lifting height from the ground – 500 mm
3. Lifting time – 45 sec
4.Boom unfolding time – 1 min
5. Maximum boom extension length – 1.5m
6. Pressure in the hydraulic cylinders of the lift – 10 MPa
7. Pressure in the hydraulic cylinders of the longitudinal stroke – 10 MPa
8. Electric power of the oil station – 1.3 kW
9. Ambient temperature, from -30 to +50°C
10. Working medium – Hydraulic oil (M-G-22-V)P
11. Power source – 24V
